Data bus:	16-bit, ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

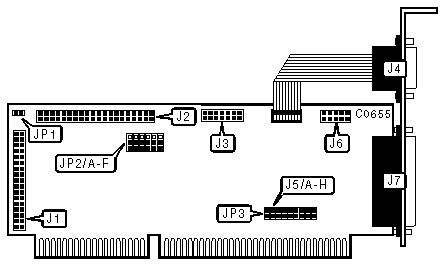

CONNECTIONS
Function	Location
34-pin control cable connector - floppy drive	J1
40-pin IDE (AT) Interface connector	J2
Game port	J3
9-pin serial port 1 - external	J4
10-pin serial port 2 - internal	J6
25-pin parallel port	J7
2-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Parallel port is output only	JP3	Closed
	Parallel port is input only	JP3	Open

SERIAL PORT 1 CONFIGURATION - JP2
COM/Address		Jumper A	Jumper B
»	COM1/3F8h	Pins 2 & 3 closed	Pins 1 & 2 closed
	COM3/3E8h	Pins 1 & 2 closed	Pins 2 & 3 closed
	COM4/2E8h	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

SERIAL PORT 2 CONFIGURATION - JP2
COM/Address		Jumper C	Jumper D
»	COM2/2F8h	Pins 2 & 3 closed	Pins 1 & 2 closed
	COM3/3E8h	Pins 2 & 3 closed	Pins 2 & 3 closed
	COM4/2E8h	Pins 1 & 2 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

SERIAL PORT 1 INTERRUPT SELECT - J5
IRQ		Jumper F	Jumper G	Jumper H
»	IRQ4	Open	Open	Closed
	IRQ3	Open	Closed	Open
	IRQ5	Closed	Open	Open
	Disabled	Open	Open	Open

SERIAL PORT 2 INTERRUPT SELECT - J5
IRQ		Jumper C	Jumper D	Jumper E
»	IRQ3	Open	Open	Closed
	IRQ4	Open	Closed	Open
	IRQ5	Closed	Open	Open
	Disabled	Open	Open	Open

PARALLEL PORT CONFIGURATION - JP2
LPT/Address	Jumper E	Jumper F
LPT1/3BCh	Pins 2 & 3 closed	Pins 2 & 3 closed
LPT2/378h	Pins 1 & 2 closed	Pins 2 & 3 closed
LPT3/278h	Pins 2 & 3 closed	Pins 1 & 2 closed
Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

PARALLEL PORT INTERRUPT SELECT - J5
IRQ		Jumper A	Jumper B
»	IRQ7	Open	Closed
	IRQ5	Closed	Open
	Disabled	Open	Open
