UNIDENTIFIED
DLW-200 SUPER IDE CONTROLLER CARD
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Two IDE(AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

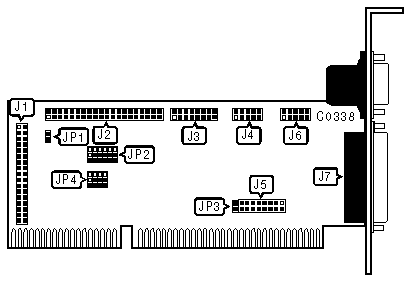

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connection - floppy drive |
J1 |
|
40-pin IDE(AT) Interface connector |
J2 |
|
15-pin game port - external |
J3 |
|
10-pin serial port 1 - internal |
J4 |
|
10-pin serial port 2 - internal |
J6 |
|
25-pin parallel port - external |
J7 |
|
2-pin connector - Drive Active LED |
JP1 |
|
SERIAL PORT 1 CONFIGURATION | |||
|
COM |
JP2/jumper 1 |
JP2/jumper 2 | |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed | |
| » |
COM1 |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
COM3 |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
COM4 |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
SERIAL PORT 2 CONFIGURATION | |||
|
COM |
JP2/jumper 3 |
JP2/jumper 4 | |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed | |
| » |
COM2 |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
COM4 |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
COM3 |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
PARALLEL PORT CONFIGURATION | |||
|
LPT |
JP2/jumper 5 |
JP2/jumper 6 | |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
LPT2 |
pins 2 & 3 closed |
pins 1 & 2 closed | |
| » |
LPT1 |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
LPT3 |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Parallel port is set for output |
JP3 |
closed |
|
Parallel port is set for input |
JP3 |
open | |
| » |
Hard drive port address is 1F0-1F7, 3F6-3F7h |
JP4/jumper 1 |
pins 1 & 2 closed |
|
Hard drive port address is 170-177, 376-377h |
JP4/jumper 1 |
pins 2 & 3 closed | |
| » |
Hard drive enabled |
JP4/jumper 2 |
pins 2 & 3 closed |
|
Hard drive disabled |
JP4/jumper 2 |
pins 1 & 2 closed | |
| » |
Floppy drive port address is 3F0-3F7h |
JP4/jumper 3 |
pins 1 & 2 closed |
|
Floppy drive port address is 370-377h |
JP4/jumper 3 |
pins 2 & 3 closed | |
| » |
Floppy drive enabled |
JP4/jumper 4 |
pins 2 & 3 closed |
|
Floppy drive disabled |
JP4/jumper 4 |
pins 1 & 2 closed | |
|
SERIAL PORT 1 INTERRUPT REQUEST | ||||
|
IRQ |
J5/jumper 1 |
J5/jumper 2 |
J5/jumper 3 | |
| » |
IRQ4 |
closed |
open |
open |
|
IRQ3 |
open |
closed |
open | |
|
IRQ5 |
open |
open |
closed | |
|
SERIAL PORT 2 INTERRUPT REQUEST | ||||
|
IRQ |
J5/jumper 4 |
J5/jumper 5 |
J5/jumper 6 | |
| » |
IRQ3 |
closed |
open |
open |
|
IRQ4 |
open |
closed |
open | |
|
IRQ5 |
open |
open |
closed | |
|
PARALLEL PORT INTERRUPT REQUEST | |||
|
IRQ |
J5/jumper 7 |
J5/jumper 8 | |
| » |
IRQ7 |
closed |
open |
|
IRQ5 |
open |
closed | |
