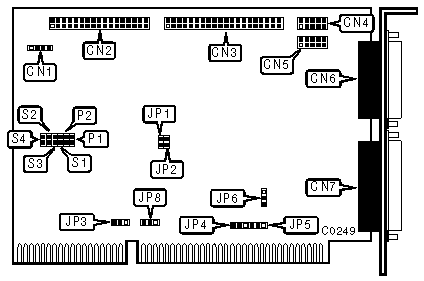

CONNECTIONS
Function	Location
4-pin connector-drive active LED	CN1
34-pin control cable connector-floppy drive	CN2
40-pin IDE Interface (AT) connector	CN3
9-pin serial port 1 (COM1/3/4)-internal	CN4
9-pin serial port 2 (COM2/3/4)-internal	CN5
15-pin game port-external	CN6
25-pin parallel port-external	CN7

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive enabled	JP1	open
	Floppy drive disabled	JP1	closed
»	Hard drive enabled	JP2	open
	Hard drive disabled	JP2	closed
»	IRQ14 enabled without Active control	JP3	pins 2 & 3 closed
	IRQ14 enabled with Active control	JP3	pins 1 & 2 closed
»	Serial Port 1 (CN4) is set to IRQ4 (COM1)	JP4	pins 2 & 3 closed
	Serial Port 1 (CN4) is set to IRQ3 (COM4)	JP4	pins 1 & 2 closed
»	Serial Port 2 (CN5) is set to IRQ3 (COM2/4)	JP5	pins 1 & 2 closed
	Serial Port 2 (CN5) is set to IRQ4 (COM3)	JP5	pins 2 & 3 closed
»	Parallel Port (CN7) is set to IRQ7 (LPT2)	JP6	pins 1 & 2 closed
	Parallel Port (CN7) is set to IRQ5 (LPT3)	JP6	pins 2 & 3 closed
»	16-bit data transfer with buffer output	JP8	pins 1 & 2 closed
	16-bit data transfer without buffer output	JP8	pins 2 & 3 closed

SERIAL PORT 2 (CN5) CONFIGURATION
COM		S2	S4
»	COM2 (2F8-2FF)	closed	open
	COM3 (3E8-3EF)	closed	closed
	COM4 (2E8-2EF)	open	closed
	Disabled	open	open

SERIAL PORT 1 (CN4) CONFIGURATION
COM		P2	S3
»	COM1 (3F8-3FF)	closed	open
	COM3 (3E8-3EF)	open	closed
	COM4 (2E8-2EF)	closed	closed
	Disabled	open	open

PARALLEL PORT (CN7) CONFIGURATION
LPT		P1	S1
»	LPT2 (378-37F)	closed	open
	LPT3 (278-27F)	open	closed
	Disabled	open	open
