SIIG, INC.

I842 SPEEDMASTER

Data Bus

32-bit VESA Local Bus

Card Size

Full-height card, Three-quarter length

Hard Drives supported

Up to 7 SCSI-2 Fast devices

Floppy drives supported

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

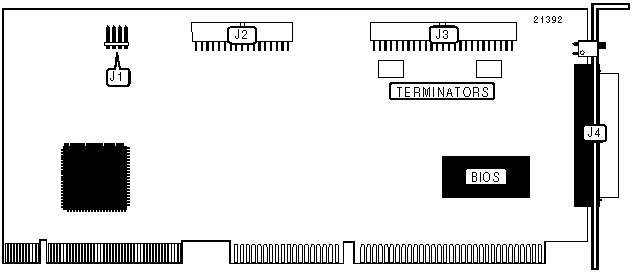

CONNECTIONS

Function

Location

Function

Location

4-pin connector - drive active LED

J1

50-pin SCSI connector - internal

J3

34-pin cable connector - floppy drive

J2

50-pin SCSI connector - external

J4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Auto port address increment function disabled

SW1/1

Off



Auto port address increment function enabled

SW1/1

On

»

Floppy drive controller enabled

SW1/2

On



Floppy drive controller disabled

SW1/2

Off
