TEKRAM TECHNOLOGY CO., LTD.

DC-820B

Data bus:

32-bit EISA

Size:

Three/quarter-length, full-height card

Hard drive supported:

Up to seven SCSI devices

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

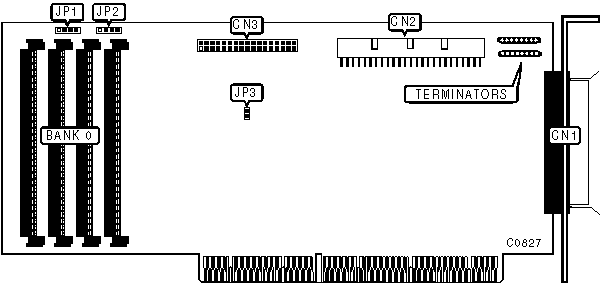

CONNECTIONS

Function

Location

50-pin SCSI-2 connector - external

CN1

50-pin SCSI connector - internal

CN2

34-pin control cable connector - floppy drive

CN3

4-pin connector - drive active LED

JP1

4-pin connector - speaker

JP2

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Floppy drive enabled

JP3

closed



Floppy drive disabled

JP3

open

DRMA CONFIGURATION TABLE

Size

Bank 0

1MB

(4) 256K x 9

4MB

(4) 1MB x 9

16MB

(4) 4MB x 9

MISCELLANEOUS TECHNICAL NOTES

Terminators must be removed only when both internal & external devices are connected to the host adapter.
