SIIG, INC.

EIDE MASTER ISA

Data bus:

16-bit ISA

Size:

Half-length, full height card

Hard drive supported:

Four IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

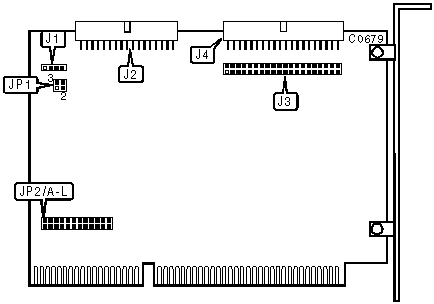

CONNECTIONS

Function

Location

4-pin connector - drive active LED

J1

34-pin control cable connector - floppy drive

J2

40-pin secondary IDE (AT) interface connector

J3

40-pin primary IDE (AT) interface connector

J4

USER CONFIGURABLE SETTINGS

» Function

Location

Setting

»

Floppy controller enabled

JP1/ pins 1 & 2

closed

»

Floppy controller disabled

JP1/pins 3 & 4

closed

»

Primary IDE (AT) interface enabled

JP2/A

closed

»

Primary IDE (AT) interface disabled

JP2/A

open

»

Secondary IDE (AT) interface enabled

JP2/B

closed

»

Secondary IDE (AT) interface disabled

JP2/B

open

PRIMARY IDE (AT) INTERRUPT SELECTION

IRQ

JP2/E

JP2/F

»

14

closed

open



10

open

closed

SECONDARY IDE (AT) INTERRUPT SELECTION

IRQ

JP2/I

JP2/J

»

15

closed

open



12

open

closed

ROM ADDRESS SELECTION

» Address

JP2/C

JP2/D

»

C800h

closed

closed

»

CC00h

closed

open

»

DC00h

open

open

»

D800h

open

closed

PRIMARY IDE (AT) DMA CHANNEL SELECTION

» Channel

JP2/G

JP2/H

»

Disabled

open

open

»

5

closed

closed

SECONDARY IDE (AT) DMA CHANNEL SELECTION

» Channel

JP2/K

JP2/L

»

Disabled

open

open

»

6

closed

closed
