TRANTOR SYSTEMS, LTD.
T160
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drives supported: |
Up to seven SCSI devices |
|

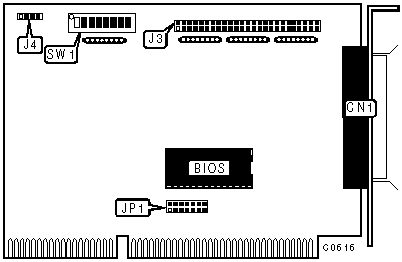

CONNECTIONS | |
|
Function |
Location |
|
25-pin SCSI connector-external |
CN1 |
|
50-pin SCSI connector-internal |
J3 |
|
4-pin connector - drive active LED |
J4 |
|
INTERRUPT REQUEST - JP1 | ||||||||
|
IRQ |
Jumper 1 |
Jumper 2 |
Jumper 3 |
Jumper 4 |
Jumper 5 |
Jumper 6 |
Jumper 7 | |
| » |
none |
open |
open |
open |
open |
open |
open |
open |
| » |
IRQ3 |
closed |
open |
open |
open |
open |
open |
open |
| » |
IRQ5 |
open |
closed |
open |
open |
open |
open |
open |
| » |
IRQ7 |
open |
open |
closed |
open |
open |
open |
open |
| » |
IRQ10 |
open |
open |
open |
closed |
open |
open |
open |
|
IRQ12 |
open |
open |
open |
open |
closed |
open |
open | |
|
IRQ14 |
open |
open |
open |
open |
open |
close |
open | |
|
IRQ15 |
open |
open |
open |
open |
open |
open |
closed | |
|
I/O PORT ADDRESS - SW1 | ||||
|
Address |
Switch 1 |
Switch 2 |
Switch 3 | |
| » |
360h |
off |
off |
off |
|
230h |
on |
on |
on | |
|
240h |
on |
on |
off | |
|
250h |
on |
off |
on | |
|
260h |
on |
off |
off | |
|
330h |
off |
on |
on | |
|
340h |
off |
on |
off | |
|
350h |
off |
off |
on | |
|
BIOS ADDRESS - SW1 | ||||
|
Address |
Switch 4 |
Switch 5 |
Switch 6 | |
| » |
Disabled |
off |
off |
off |
| » |
C8000h |
off |
off |
on |
| » |
CA000h |
off |
on |
off |
| » |
CE000h |
off |
on |
on |
| » |
D0000h |
on |
off |
off |
| » |
D4000h |
on |
off |
on |
| » |
D8000h |
on |
on |
off |
| » |
DC000h |
on |
on |
on |
|
MISCELLANEOUS TECHNICAL NOTES |
|
SW1 switches 7 and 8 are factory configured - do not alter. |
