SANYO BUSINESS SYSTEMS CORPORATION
SMILE/AT 005
|
Q1/ 9 3 | |
|
Data bus: |
16-bit, ISA |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
None |
|

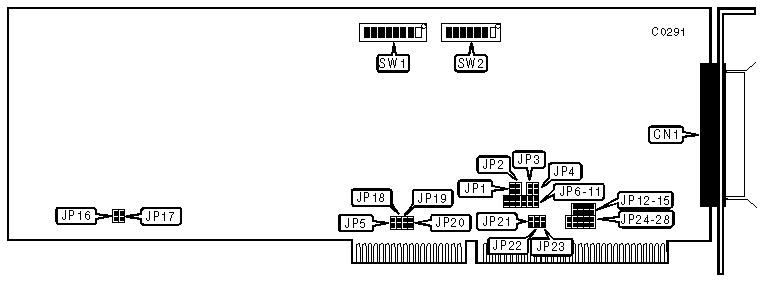

CONNECTIONS | |
|
Function |
Location |
|
25-pin SCSI connector-external |
CN1 |
|
IRQ SELECT JUMPERS | |||||||||
|
IRQ |
JP5 |
JP18 |
JP19 |
JP20 |
JP21 |
JP22 |
JP23 |
JP24 | |
| » |
IRQ15 |
closed |
open |
open |
open |
open |
open |
open |
open |
|
IRQ12 |
open |
closed |
open |
open |
open |
open |
open |
open | |
|
IRQ11 |
open |
open |
closed |
open |
open |
open |
open |
open | |
|
IRQ10 |
open |
open |
open |
closed |
open |
open |
open |
open | |
|
IRQ3 |
open |
open |
open |
open |
closed |
open |
open |
open | |
|
IRQ4 |
open |
open |
open |
open |
open |
closed |
open |
open | |
|
IRQ5 |
open |
open |
open |
open |
open |
open |
closed |
open | |
|
IRQ7 |
open |
open |
open |
open |
open |
open |
open |
closed | |
|
ON-BOARD RAM CONFIGURATION JUMPERS | ||
|
Ram |
JP16 |
JP17 |
|
8Kx8 memory chips |
closed |
open |
|
32Kx8 memory chips |
open |
closed |
|
ON-BOARD ROM ADDRESS | ||||||||
|
Address |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
D8000h |
on |
off |
off |
on |
on |
on |
on |
|
C8000h |
on |
on |
off |
on |
on |
on |
on | |
|
C8800h |
on |
on |
off |
on |
on |
on |
off | |
|
CF800h |
on |
on |
off |
off |
off |
off |
off | |
|
D0000h |
on |
off |
on |
on |
on |
on |
on | |
|
DF000h |
on |
off |
off |
off |
off |
off |
on | |
|
DF800h |
on |
off |
off |
off |
off |
off |
off | |
|
ON-BOARD RAM ADDRESS | ||||||
|
Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 - 8 | |
| » |
C0000h |
off |
off |
on |
on |
on |
|
90000h |
off |
on |
on |
off |
on | |
|
A0000h |
off |
on |
off |
on |
on | |
|
B0000h |
off |
on |
off |
off |
on | |
|
D0000h |
off |
off |
on |
off |
on | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
JP1-JP4, JP6-JP15, and JP25-JP28 are used to configure the BIOS EPROM size. The default is JP1, JP2, JP3, JP4, JP25, JP25, and JP26 closed for 2KB. |
