RELIALOGIC CORPORATION PRIVATE, LTD.

CA9332

Data Bus

16-bit ISA

Card Size

Full height, half length

Hard Drives Supported

Two IDE(XT/AT) devices

Floppy Drives Supported

Unidentified

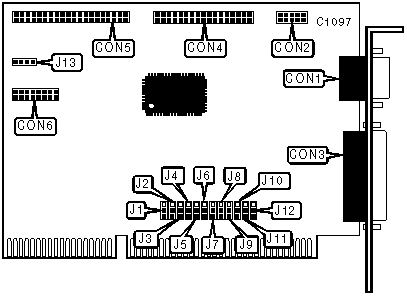

CONNECTIONS

Function

Label

Function

Label

9-pin serial port 1 - external

CON1

40-pin IDE(AT) connector

CON5

10-pin serial port 2 - internal

CON2

16-pin game port

CON6

25-pin parallel port - external

CON3

4-pin drive active LED

J13

34-pin cable connector - floppy drive

CON4





USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Floppy drive interface enabled

J1

Pins 1 & 2 closed



Floppy drive interface disabled

J1

Pins 2 & 3 closed

»

Floppy address is 3F0h

J2

Pins 1 & 2 closed



Floppy address is 370h

J2

Pins 2 & 3 closed

»

IDE(AT) interface enabled

J3

Pins 1 & 2 closed



IDE(AT) interface disabled

J3

Pins 2 & 3 closed

»

IDE(AT) address is 1F0h

J4

Pins 1 & 2 closed



IDE(AT) address is 170h

J4

Pins 2 & 3 closed

»

IDE(XT) address is 320h

J5

Pins 1 & 2 closed



IDE(XT) address is 324h

J5

Pins 2 & 3 closed

»

IDE connector is IDE(AT)

J6

Pins 1 & 2 closed



IDE connector is IDE(XT)

J6

Pins 2 & 3 closed

»

Serial port 1 enabled

J7

Pins 1 & 2 closed



Serial port 1 disabled

J7

Pins 2 & 3 closed

»

Serial port 1 address is 3F8h (COM1:)

J8

Pins 1 & 2 closed



Serial port 1 address is 3E8h (COM3:)

J8

Pins 2 & 3 closed

USER CONFIGURABLE SETTINGS (CON’T)

Setting

Label

Position

»

Serial port 2 enabled

J9

Pins 1 & 2 closed



Serial port 2 disabled

J9

Pins 2 & 3 closed

»

Serial port 2 address is 2F8h (COM2:)

J10

Pins 1 & 2 closed



Serial port 2 address is 2E8h (COM4:)

J10

Pins 2 & 3 closed

»

Parallel port enabled

J11

Pins 1 & 2 closed



Parallel port disabled

J11

Pins 2 & 3 closed

»

Parallel port address is 378h

J12

Pins 1 & 2 closed



Parallel port address is 278h

J12

Pins 2 & 3 closed
