PROMISE TECHNOLOGY, INC.
DC2000A-VL
|
| |
|
Data bus: |
32-bit VL-bus |
|
Size: |
Three-quarter length, half-height card |
|
Hard drive supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

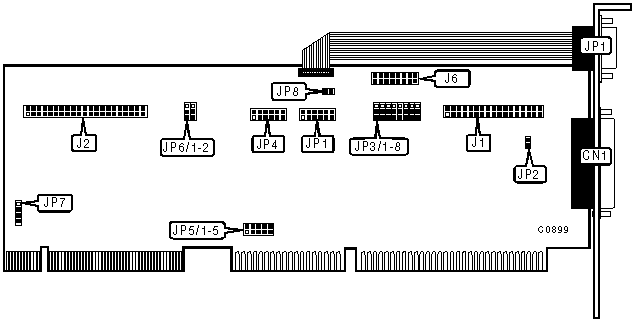

CONNECTIONS | |
|
Function |
Location |
|
25-pin parallel port - external |
CN1 |
|
34-pin cable connector - floppy drive |
J1 |
|
40-pin IDE(AT) interface connector |
J2 |
|
16-pin game port |
J6 |
|
9-pin serial port 1 - external, 10-pin serial port 1 internal |
JP1 |
|
10-pin serial port 2 - internal |
JP4 |
|
4-pin connector - drive active LED |
JP7 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Location |
Setting |
|
Printer port (CN1) is uni-directional |
JP2 |
closed |
|
Printer port (CN1) is bi-directional |
JP2 |
open |
|
Floppy drive interface enabled |
JP3/7 |
pins 1 & 2 closed |
|
Floppy drive interface disabled |
JP3/7 |
pins 2 & 3 closed |
|
Game port enabled |
JP8 |
closed |
|
Game port disabled |
JP8 |
open |
|
HARD DRIVE SPEED | |||
|
Speed |
JP6/1 |
JP6/2 | |
| » |
0 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
1 |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
2 |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
SERIAL PORT 1 ADDRESS SELECTION | |||
|
COM |
JP3/1 |
JP3/2 | |
| » |
COM1 (3F8h) |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
COM3 (3E8h) |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||
|
COM |
JP3/3 |
JP3/4 | |
| » |
COM2 (2F8h) |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
COM4 (2E8h) |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
PARALLEL PORT ADDRESS SELECTION | ||||
|
LPT |
JP3/5 |
JP3/6 |
JP3/8 | |
| » |
LPT1 (378h) / IRQ7 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
LPT2 (278h) / IRQ5 |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
LPT3 (3BCh) / IRQ7 |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
open | |
|
Note: LPT1 & LPT3 uses IRQ7. LPT2 uses IRQ5. | ||||
|
BIOS ADDRESS | ||||||
|
Address |
JP5/1 |
JP5/2 |
JP5/3 |
JP5/4 |
JP5/5 | |
| » |
D8000h |
open |
open |
closed |
closed |
closed |
|
DE000h |
open |
open |
open |
open |
closed | |
|
DC000h |
open |
open |
open |
closed |
closed | |
|
DA000h |
open |
open |
closed |
open |
closed | |
|
D6000h |
open |
closed |
open |
open |
closed | |
|
D4000h |
open |
closed |
open |
closed |
closed | |
|
D2000h |
open |
closed |
closed |
open |
closed | |
|
D0000h |
open |
closed |
closed |
closed |
closed | |
|
CE000h |
closed |
open |
open |
open |
closed | |
|
CC000h |
closed |
open |
open |
closed |
closed | |
|
CA000h |
closed |
open |
closed |
open |
closed | |
|
C8000h |
closed |
open |
closed |
closed |
closed | |
|
Disabled |
N/A |
N/A |
N/A |
N/A |
open | |
