Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Up to 7 SCSI devices
Floppy drives supported:	None

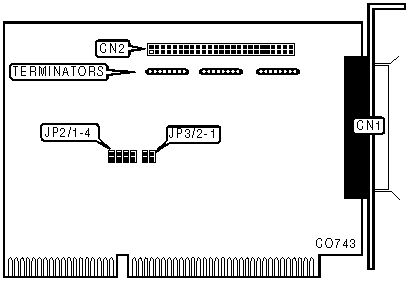

CONNECTIONS
Function	Location
50-pin SCSI connector - external	CN1
50-pin SCSI connector - internal	CN2

INTERRUPT SELECTION
IRQ		JP2/1	JP2/2	JP2/3	JP2/4
»	11	open	open	closed	open
	10	open	open	open	closed
	12	open	closed	open	open
	15	closed	open	open	open

BASE ADDRESS SELECTION
Address	JP3/1	JP3/2
C8000h	open	open
CC000h	open	closed
D8000h	closed	open
DC000h	closed	closed

MISCELLANEOUS TECHNICAL NOTES

Remove terminators only when XL221 is not first or last in the SCSI devices chain.
