PINE TECHNOLOGY

PT-626

Data bus:

32-bit, VL-Bus

Size:

Three quarter-length, full-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

360KB, 720KB, 1.2MB, 1.44MB

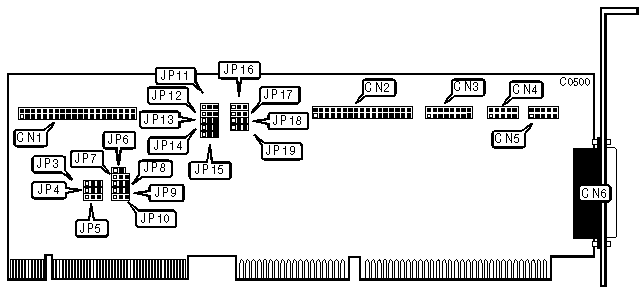

CONNECTIONS

Function

Location

40-pin IDE (AT) interface connector

CN1

34-pin control cable connector - floppy drive

CN2

15-pin game port - internal

CN3

9-pin serial port 1 (COM1/3)

CN4

9-pin serial port 2 (COM2/4)

CN5

25-pin parallel port

CN6

External IDE (AT) interface LED connector

JP6

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

IDE interface enabled

JP7

pins 1 & 2 closed



IDE interface disabled

JP7

pins 2 & 3 closed

»

Parallel port enabled

JP11

pins 1 & 2 closed



Parallel port disabled

JP11

pins 2 & 3 closed

»

Hard drive is installed in system

JP12

pins 2 & 3 closed



Hard drive is not installed in system

JP12

pins 1 & 2 closed

USER CONFIGURABLE SETTINGS(CONTINUED)

Function

Location

Setting

»

Serial port 1 enabled

JP13

pins 1 & 2 closed



Serial port 1 disabled

JP13

pins 2 & 3 closed

»

Serial port 1 address 3F8h select

JP14

pins 1 & 2 closed



Serial port 1 address 3E8h select

JP14

pins 2 & 3 closed

»

Serial port 2 enabled

JP15

pins 1 & 2 closed



Serial port 2 disabled

JP15

pins 2 & 3 closed

»

Floppy drive interface enabled

JP16

pins 1 & 2 closed



Floppy drive interface disabled

JP16

pins 2 & 3 closed

»

Parallel port address 378h select

JP17

pins 1 & 2 closed



Parallel port address 278h select

JP17

pins 2 & 3 closed

»

Serial port 2 address 2F8h select

JP18

pins 1 & 2 closed



Serial port 2 address 2E8h select

JP18

pins 2 & 3 closed

»

Game port enabled

JP19

pins 1 & 2 closed



Game port disabled

JP19

pins 2 & 3 closed

ACTIVE/RECOVERY TIMES FOR 33MHZ SYSTEMS

Active

Recov.

JP3

JP4

JP5

JP8

JP9

JP10

5T

5T

pins 2 & 3

pins 1 & 2

pins 2 & 3

pins 2 & 3

pins 2 & 3

pins 2 & 3

5T

7T

pins 2 & 3

pins 1 & 2

pins 2 & 3

pins 1 & 2

pins 2 & 3

pins 2 & 3

5T

9T

pins 2 & 3

pins 1 & 2

pins 2 & 3

pins 2 & 3

pins 1 & 2

pins 2 & 3

Note: All pins designated should be placed in the closed position.

ACTIVE/RECOVERY TIMES FOR 50MHZ SYSTEMS

Active

Recov.

JP3

JP4

JP5

JP8

JP9

JP10

9T

9T

pins 2 & 3

pins 1 & 2

pins 1 & 2

pins 2 & 3

pins 1 & 2

pins 2 & 3

9T

11T

pins 2 & 3

pins 1 & 2

pins 1 & 2

pins 1 & 2

pins 1 & 2

pins 2 & 3

9T

13T

pins 2 & 3

pins 1 & 2

pins 1 & 2

pins 2 & 3

pins 2 & 3

pins 1 & 2

Note: All pins designated should be placed in the closed position.
