PC WARE INTERNATIONAL, INC.

V-U40821 I/O

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

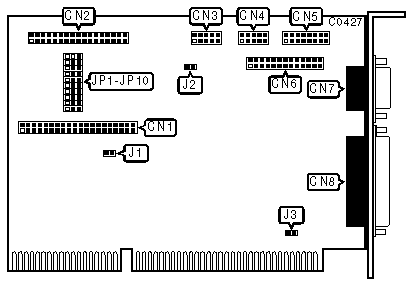

CONNECTIONS

Function

Location

40-pin IDE(AT) Interface connector

CN1

34-pin control cable connector - floppy drive

CN2

10-pin serial port (COM1/3) - internal

CN3

10-pin serial port (COM2/4) - internal

CN4

15-pin game port - internal

CN5

26-pin VESA feature connector - internal

CN6

15-pin VGA analog video port - external

CN7

25-pin parallel port (LPT2/3) - external

CN8

2-pin drive active LED

J2

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

I/O Channel Ready signal disabled

J1

open



I/O Channel Ready signal enabled

J1

closed

»

VGA port Interrupt Request IRQ2 disabled

J3

open



VGA port Interrupt Request IRQ2 enabled

J3

closed

»

Serial Port 2 (CN4) is set to COM2

JP1

pins 1 & 2 closed



Serial Port 2 (CN4) is set to COM4

JP1

pins 2 & 3 closed

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Serial Port 1 (CN3) enabled

JP2

pins 1 & 2 closed



Serial Port 1 (CN3) disabled

JP2

pins 2 & 3 closed

»

Serial Port 2 (CN4) enabled

JP3

pins 1 & 2 closed



Serial Port 2 (CN4) disabled

JP3

pins 2 & 3 closed

»

Game Port (CN5) enabled

JP4

pins 1 & 2 closed



Game Port (CN5) disabled

JP4

pins 2 & 3 closed

»

Parallel Port (CN8) is set to LPT2

JP5

pins 1 & 2 closed



Parallel Port (CN8) is set to LPT3

JP5

pins 2 & 3 closed

»

Parallel Port (CN8) enabled

JP6

pins 1 & 2 closed



Parallel Port (CN8) disabled

JP6

pins 2 & 3 closed

»

Hard drive controller installation exists

JP7

pins 1 & 2 closed



Hard drive controller installation does not exist

JP7

pins 2 & 3 closed

»

Serial Port 1 (CN3) is set to COM1

JP8

pins 1 & 2 closed



Serial Port 1 (CN3) is set to COM3

JP8

pins 2 & 3 closed

»

Hard drive enabled

JP9

pins 1 & 2 closed



Hard drive disabled

JP9

pins 2 & 3 closed

»

Floppy drive enabled

JP10

pins 1 & 2 closed



Floppy drive disabled

JP10

pins 2 & 3 closed
