PINE TECHNOLOGY

PT-611

Data bus:

16-bit, ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

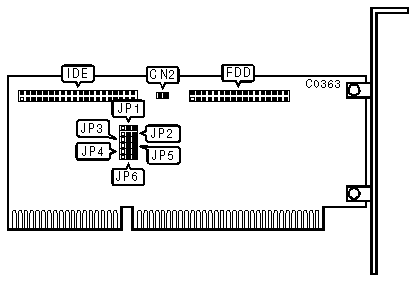

CONNECTIONS

Function

Location

40-pin IDE(AT) Interface connector

IDE

2-pin connector - Drive active LED

CN2

34-pin control cable connector - floppy drive

FDD

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

I/O Channel Ready signal disabled

JP1

pins 1 & 2 closed



I/O Channel Ready signal enabled

JP1

pins 2 & 3 closed

»

Hard drive enabled

JP2

pins 1 & 2 closed



Hard drive disabled

JP2

pins 2 & 3 closed

»

Floppy drive enabled

JP3

pins 1 & 2 closed



Floppy drive disabled

JP3

pins 2 & 3 closed

»

Floppy drive booting sequence is A:/B:

JP4

pins 1 & 2 closed



Floppy drive booting sequence is B:/A:

JP4

pins 2 & 3 closed

»

Floppy drive port address is 3F0-3F7h

JP5

pins 1 & 2 closed



Floppy drive port address is 370-377h

JP5

pins 2 & 3 closed

»

Hard drive port address is 1F0-1F7h

JP6

pins 1 & 2 closed



Hard drive port address is 170-177h

JP6

pins 2 & 3 closed
