PROMISE TECHNOLOGY, INC.
DRIVECACHE DC2032
|
|
Data bus: 16-bit, ISA
Size: Full-length, full-height card
Hard drives supported: Four IDE(AT) drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
One floppy tape drive
Maximum heads/cyl.: 16 heads and 2048 cylinders
|

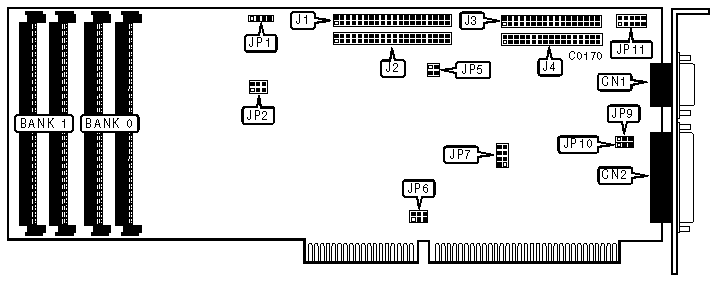

CONNECTIONS | |
|
Function |
Location |
|
9-pin serial port (COM1/3)-external |
CN1 |
|
25-pin parallel port (LPT1/2)-external |
CN2 |
|
40-pin IDE(AT) control cable connector-hard drive 0 and 1 |
J1 |
|
40-pin IDE(AT) control cable connector-hard drive 2 and 3 |
J2 |
|
34-pin control cable connector-floppy drive |
J3 |
|
34-pin control cable connector-floppy tape drive |
J4 |
|
4-pin connector-drive active LED |
JP1 |
|
9-pin serial port (COM2/4)-internal |
JP11 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive enabled |
JP9 |
pins 1 & 2 closed |
|
Floppy drive disabled |
JP9 |
pins 2 & 3 closed | |
| » |
Parallel port (CN12) set to LPT1 |
JP10 |
pins 2 & 3 closed |
|
Parallel port (CN12) set to LPT2 |
JP10 |
pins 1 & 2 closed | |
|
Parallel port disabled |
JP10 |
open | |
|
INTERRUPT REQUEST | ||||||
|
IRQ |
JP2/jumper 2 |
JP2/jumper 3 |
JP3/jumper 1 |
JP3/jumper 2 |
JP3/jumper 3 | |
|
IRQ12 |
closed |
open |
closed |
open |
open | |
| » |
IRQ14 |
open |
open |
open |
closed |
open |
|
IRQ15 |
open |
closed |
open |
open |
closed | |
|
Note:JP2/1, JP2/4 and JP3/4 are Not used and should not be altered. | ||||||
|
SERIAL PORT CONFIGURATION | |||
|
CN10 (external) |
CN11 (internal) |
JP5/jumper 1 |
JP5/jumper 2 |
|
COM1 |
COM2 |
open |
open |
|
COM3 |
COM2 |
closed |
open |
|
COM1 |
COM4 |
open |
closed |
|
COM3 |
COM4 |
closed |
closed |
|
BIOS ADDRESS | |||||
|
Address |
JP7/jumper 1 |
JP7/jumper 2 |
JP7/jumper 3 |
JP7/jumper 4 | |
|
C800h |
closed |
open |
closed |
closed | |
|
CA00h |
closed |
open |
closed |
open | |
|
CC00h |
closed |
open |
open |
closed | |
|
CE00h |
closed |
open |
open |
open | |
|
D000h |
open |
closed |
closed |
closed | |
|
D200h |
open |
closed |
closed |
open | |
|
D400h |
open |
closed |
open |
closed | |
|
D600h |
open |
closed |
open |
open | |
| » |
D800h |
open |
open |
closed |
closed |
|
DA00h |
open |
open |
closed |
open | |
|
DC00h |
open |
open |
open |
closed | |
|
DE00h |
open |
open |
open |
open | |
|
ON-BOARD CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512k |
(2) 256K x 9 |
NONE |
|
1M |
(2) 256K x 9 |
(2) 256K x 9 |
|
2M |
(2) 1M x 9 |
NONE |
|
2.5M |
(2) 256K x 9 |
(2) 1M x 9 |
|
4M |
(2) 1M x 9 |
(2) 1M x 9 |
|
8M |
(2) 4M x 9 |
NONE |
|
8.5M |
(2) 256K x 9 |
(2) 4M x 9 |
|
10M |
(2) 256K x 9 |
(2) 4M x 9 |
|
16M |
(2) 4M x 9 |
(2) 4M x 9 |
