PERCEPTIVE SOLUTIONS, INC.
WINSTOR, QUICKCACHE
|
|
Data bus: 16-bit, ISA
Size: Full-length, full-height card
Hard Drives Supported: Four AT Interface (IDE) drives
Floppy Drives Supported: Two or Four 360KB, 720KB, 1.2MB, or 1.44MB drives
|

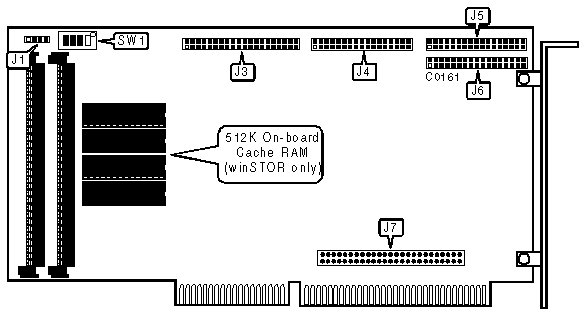

CONNECTIONS | |
|
Functiion |
Location |
|
4-pin connector-drive active LED |
J1 |
|
40-pin control cable connector-hard drive 1&2 |
J3 |
|
40-pin control cable connector-hard drive 3&4 |
J4 |
|
34-pin control cable connector-floppy drive |
J5 |
|
34-pin control cable connector-floppy drive (optional) |
J6 |
|
50-pin receptacle-Hardware Data Compression Module (winSTOR only) |
J7 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive enabled |
SW1/switch 1 |
off |
|
Floppy drive disabled |
SW1/switch 1 |
on | |
| » |
Single-speed floppy supported |
SW1switch 2 |
off |
|
Dual-speed floppy supported |
SW1/switch 2 |
on | |
| » |
Factory configured - do not alter |
SW1/switch 3 |
off |
| » |
Factory configured - do not alter |
SW1/switch 4 |
off |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Both the winSTOR and the quickCACHE may use 256KB, 1MB or 4MB x8 or x9 SIMM's (100ns or faster). A minimum of 512K cache is required for operation. The winSTOR has 512K on-board and does not require SIMM's to operate. |
