Data bus:	32-bit, EISA
Size:	Three/quarter-length, full-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	None

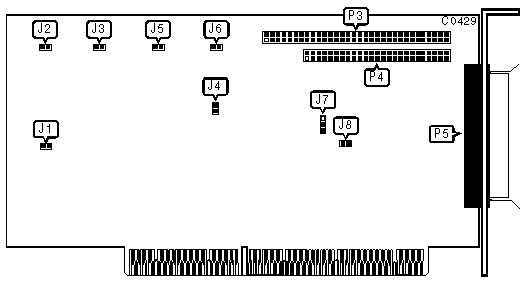

CONNECTIONS
Function	Location
2-pin connector-Cache Write Pending LED	J2
2-pin connector-EISA active LED	J3
2-pin connector-SCSI active LED	J5
68-pin SCSI connector - internal	P3
50-pin SCSI connector - internal	P4
50-pin high-density SCSI II connector - external	P5

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	SCSI terminators enabled	J8	closed
	SCSI terminators disabled	J8	open

MISCELLANEOUS TECHNICAL NOTES

Jumpers J1, J4, and J6 are factory configured to open. Jumper J7 is factory configured to pins 2 & 3 closed - do not alter these settings.
