ICP VORTEX COMPUTERSYSREME GMBH
GDT6557RP
Card Type |
Hard drive controller card |
Hard Drives supported |
Up to 35 SCSI devices |
Floppy drives supported |
None |
Cache size |
4/8/16/32/64MB |
Data Bus |
32-bit PCI |
Card Size |
Full-length, full-height card |

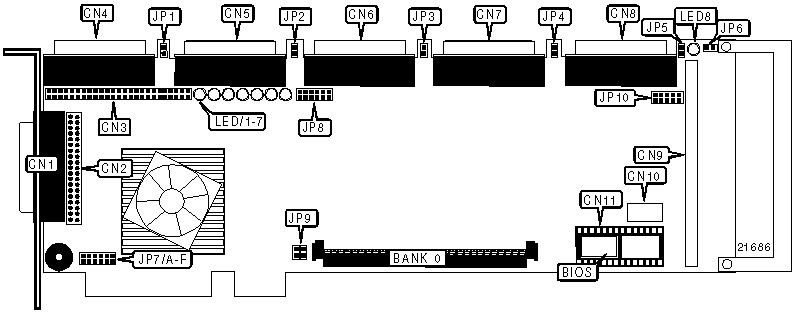

CONNECTIONS | |||
Function |
Location |
Function |
Location |
SCSI 68-pin channel A connector - external |
CN1 |
SCSI 68-pin channel D connector - internal |
CN7 |
Feature connector A |
CN2 |
SCSI 68-pin channel E connector - internal |
CN8 |
SCSI 50-pin channel A connector - internal |
CN3 |
Feature connector B |
CN9 |
SCSI 68-pin channel A connector - internal |
CN4 |
Feature socket A |
CN10 |
SCSI 68-pin channel B connector - internal |
CN5 |
Feature socket B |
CN11 |
SCSI 68-pin channel C connector - internal |
CN6 |
LED connector |
JP8 |
USER CONFIGURABLE SETTINGS | |||
Function |
Label |
Position | |
» |
Active termination channel A enabled |
JP1 |
Closed |
Active termination channel A disabled |
JP1 |
Open | |
» |
Active termination channel B enabled |
JP2 |
Closed |
Active termination channel B disabled |
JP2 |
Open | |
» |
Active termination channel C enabled |
JP3 |
Closed |
Active termination channel C disabled |
JP3 |
Open | |
» |
Active termination channel D enabled |
JP4 |
Closed |
Active termination channel D disabled |
JP4 |
Open | |
» |
Active termination channel E enabled |
JP5 |
Closed |
Active termination channel E disabled |
JP5 |
Open | |
» |
Factory configured - do not alter |
JP6 |
Reserved |
» |
Factory configured - do not alter |
JP7/A |
Reserved |
EDO SIMM installed |
JP7/B |
Closed | |
Fast Page Mode SIMM installed |
JP7/B |
Open | |
» |
Factory configured - do not alter |
JP7/C |
Reserved |
» |
Factory configured - do not alter |
JP7/D |
Reserved |
» |
Factory configured - do not alter |
JP7/E |
Reserved |
» |
Factory configured - do not alter |
JP7/F |
Reserved |
» |
Active termination channel C enabled |
JP8 |
Closed |
Active termination channel C disabled |
JP8 |
Open | |
» |
Factory configured - do not alter |
JP9 |
Reserved |
» |
Factory configured - do not alter |
JP10 |
Reserved |
DIAGNOSTIC LED(S) | |||
LED |
Color |
Status |
Condition |
LED1 |
Yellow |
On/Blinking |
SCSI channel A active |
LED1 |
Yellow |
Off |
SCSI channel A idle |
LED2 |
Yellow |
On/Blinking |
SCSI channel B active |
LED2 |
Yellow |
Off |
SCSI channel B idle |
LED3 |
Yellow |
On/Blinking |
SCSI channel C active |
LED3 |
Yellow |
Off |
SCSI channel C idle |
LED4 |
Yellow |
On/Blinking |
SCSI channel D active |
LED4 |
Yellow |
Off |
SCSI channel D idle |
LED5 |
Yellow |
On/Blinking |
SCSI channel E active |
LED5 |
Yellow |
Off |
SCSI channel E idle |
LED6 |
Green |
On |
DMA OK |
LED6 |
Green |
Off |
DMA not OK |
LED7 |
Green |
On |
Status OK |
LED7 |
Green |
Off |
Status not OK |
LED8 |
Unidentified |
On/Blinking |
SCSI channel A or B active |
LED8 |
Unidentified |
Off |
SCSI channel A or B idle |
CACHE CONFIGURATION | |
Size |
BANK 0 |
4MB |
1MB x 36 |
8MB |
2MB x 36 |
16MB |
4MB x 36 |
32MB |
8MB x 36 |
64MB |
16MB x 36 |
