LONGSHINE MICROSYSTEM, INC.

LCS-6624G (REV. UM-6624GW1-00),

LCS-6624G (REV. W1)

Card Type

Hard drive controller card

Hard Drives supported

Two IDE (AT) drives

Floppy drives supported

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

Data Bus

16-bit ISA

Card Size

Half-length, half-height card

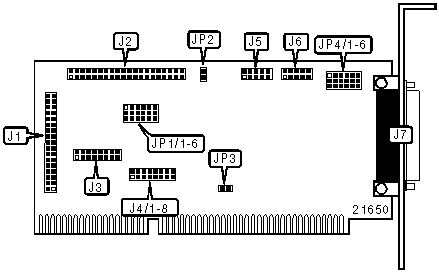

CONNECTIONS

Function

Location

Function

Location

34-pin cable connector - floppy drive

J1

10-pin serial port 1 - internal

J6

40-pin primary IDE(AT) connector

J2

25-pin parallel port - external

J7

16-pin game port

J3

2-pin connector - drive active LED

JP2

10-pin serial port 2 - internal

J5



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

IDE primary address is 3F6h, 3F7h, 1F0-1F7h

JP1/1

Pins 1 & 2 closed



IDE secondary address is 376h, 377h, 170-177h

JP1/1

Pins 2 & 3 closed

»

Floppy drive address is 3F0-3F7h

JP1/2

Pins 1 & 2 closed



Floppy drive address is 370-377h

JP1/2

Pins 2 & 3 closed

»

Floppy drive order is normal (A:, B:)

JP1/3

Pins 2 & 3 closed



Floppy drive order is reversed (B:, A:)

JP1/3

Pins 1 & 2 closed

»

IDE(AT) interface enabled

JP1/4

Pins 2 & 3 closed



IDE(AT) interface disabled

JP1/4

Pins 1 & 2 closed

»

Floppy drive interface enabled

JP1/5

Pins 2 & 3 closed



Floppy drive interface disabled

JP1/5

Pins 1 & 2 closed

»

PC/XT

JP1/6

Pins 1 & 2 closed



PC/AT

JP1/6

Pins 2 & 3 closed

PARALLEL PORT ADDRESS SELECTION

Setting

JP4/5

JP4/6

LPT1 (378h)

Pins 2 & 3 closed

Pins 2 & 3 closed

LPT2 (278h)

Pins 1 & 2 closed

Pins 2 & 3 closed

LPT3 (3BCh)

Pins 2 & 3 closed

Pins 1 & 2 closed

Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

SERIAL PORT 1 ADDRESS SELECTION

Setting

JP4/1

JP4/2

COM1 (3F8h)

Pins 2 & 3 closed

Pins 1 & 2 closed

COM3 (3E8h)

Pins 1 & 2 closed

Pins 2 & 3 closed

COM4 (2E8h)

Pins 2 & 3 closed

Pins 2 & 3 closed

Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

SERIAL PORT 2 ADDRESS SELECTION

Setting

JP4/3

JP4/4

COM2 (2F8h)

Pins 2 & 3 closed

Pins 1 & 2 closed

COM3 (3E8h)

Pins 2 & 3 closed

Pins 2 & 3 closed

COM4 (2E8h)

Pins 1 & 2 closed

Pins 2 & 3 closed

Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

SERIAL PORT 1 INTERRUPT SELECTION

IRQ

J4/1

J4/2

J4/3

IRQ4

Closed

Open

Open

IRQ3

Open

Closed

Open

IRQ5

Open

Open

Closed

SERIAL PORT 2 INTERRUPT SELECTION

IRQ

J4/4

J4/5

J4/6

IRQ3

Closed

Open

Open

IRQ4

Open

Closed

Open

IRQ5

Open

Open

Closed

PARALLEL PORT INTERRUPT SELECTION

IRQ

J4/7

J4/8

IRQ7

Closed

Open

IRQ5

Open

Closed

PARALLEL PORT MODE SELECTION

Setting

Label

Position

Uni-directional

JP3

Closed

Bi-Directional (EPP/ECP)

JP3

Open
