LOMAS DATA PRODUCTS, INC.

SCSI FAST/WIDE DEVICE ADAPTER

Data Bus

32-bit PCI

Card Size

Full height, half length

Hard Drives Supported

Up to 7 SCSI devices

Up to 15 SCSI-2 Fast/Wide devices

Floppy Drives Supported

None

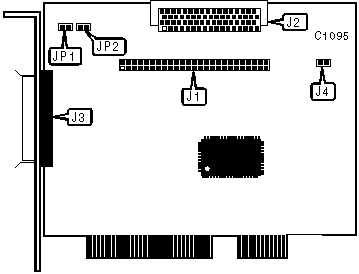

CONNECTIONS

Function

Label

Function

Label

50-pin SCSI connector - internal

J1

68-pin SCSI connector - external

J3

68-pin SCSI connector - internal

J2

2-pin drive active LED

J4

SCSI TERMINATION (HIGH ORDER BYTE)

J1

J2

J3

JP2

Not used

Used

16-bit SCSI

Open

Used

Not used

16-bit SCSI

Closed

Not used

Used

8-bit SCSI

Closed

Used

Not used

8-bit SCSI

Closed

SCSI TERMINATION (LOW ORDER BYTE)

J1

J2

J3

JP1

Used

Not used

8/16-bit SCSI

Open

Not used

Used

8/16-bit SCSI

Open

Used

Not used

Not used

Closed

Not used

Used

Not used

Closed

Not used

Not used

Not used

Closed
