Data bus:	16-bit, MCA
Size:	Full length, full-height card
Hard drive supported:	One proprietary IDE(AT) drive
Floppy drives supported:	None

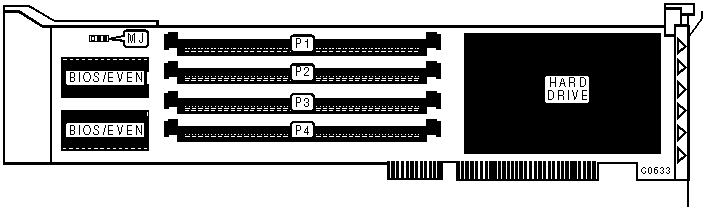

USER CONFIGURABLE JUMPERS
Function	Location	Settings
None IBM SIMM	MJ	pins 1 & 2 closed
IBM SIMM only	MJ	pins 2 & 3 closed

DRAM CONFIGURATIONS
Size	P1	P2	P3	P4
2MB	512KB x 36	none	none	none
4MB	512KB x 36	512KB x 36	none	none
4MB	1M x 36	none	none	none
6MB	512KB x 36	512KB x 36	512KB x 36	none
6MB	512KB x 36	1M x 36	none	none
6MB	1M x 36	512KB x 36	none	none
8MB	512KB x 36	512KB x 36	512KB x 36	512KB x 36
8MB	512KB x 36	512KB x 36	1M x 36	none
8MB	512KB x 36	1M x 36	512KB x 36	none
8MB	1M x 36	512KB x 36	512KB x 36	none
8MB	1M x 36	1M x 36	none	none
10MB	512KB x 36	512KB x 36	512KB x 36	1M x 36
10MB	512KB x 36	512KB x 36	1M x 36	512KB x 36
10MB	512KB x 36	1M x 36	512KB x 36	512KB x 36
10MB	1M x 36	512KB x 36	512KB x 36	512KB x 36
10MB	1M x 36	1M x 36	512KB x 36	none
10MB	512KB x 36	1M x 36	1M x 36	none
10MB	1M x 36	512KB x 36	1M x 36	none
12MB	512KB x 36	512KB x 36	1M x 36	1M x 36
12MB	512KB x 36	1M x 36	512KB x 36	1M x 36
12MB	1M x 36	512KB x 36	1M x 36	512KB x 36
12MB	1M x 36	1M x 36	512KB x 36	512KB x 36
12MB	1M x 36	512KB x 36	512KB x 36	1M x 36
12MB	1M x 36	1M x 36	1M x 36	none
14MB	1M x 36	1M x 36	1M x 36	512KB x 36
14MB	1M x 36	1M x 36	512KB x 36	1M x 36
14MB	1M x 36	512KB x 36	1M x 36	1M x 36
14MB	512KB x 36	1M x 36	1M x 36	1M x 36
16MB	1M x 36	1M x 36	1M x 36	1M x 36
Note: 256KB x 36 SIMMs and SIMMs slower than 85ns are not supported.
