JPN CORPORATION
CA9077
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, half-height card |
|
Hard drive supported: |
Two IDE (AT) Interface drives |
|
Floppy drives supported: |
Four 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives |
|

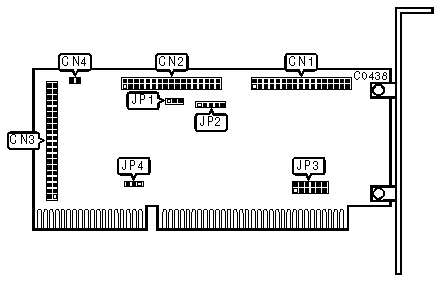

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector - floppy drive 0 |
CN1 |
|
34-pin control cable connector - floppy drive 1 |
CN2 |
|
40-pin IDE (AT) Interface connector |
CN3 |
|
2-pin connector - drive active LED |
CN4 |
|
BIOS ADDRESS - JP3 | |||||||
|
Address |
Jumper 1 |
Jumper 2 |
Jumper3 |
Jumper 4 |
Jumper 5 |
Jumper 6 | |
| » |
C800h |
closed |
open |
open |
open |
open |
open |
|
CC00h |
open |
closed |
open |
open |
open |
open | |
|
D000h |
open |
open |
closed |
open |
open |
open | |
|
D400h |
open |
open |
open |
closed |
open |
open | |
|
D800h |
open |
open |
open |
open |
closed |
open | |
|
DC00h |
open |
open |
open |
open |
open |
closed | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Hard drive enabled |
JP4 |
pins 1 & 2 closed |
|
Hard drive disabled |
JP4 |
pins 2 & 3 closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Jumper JP1 is factory configured to pins 1 & 2 closed; jumper JP2 is factory configured to pins 1 & 2 closed and pins 3 & 4 closed - do not alter these settings. |
