INFOMATIC POWER SYSTEMS CORPORATION

VISTA-5033

Data bus:

32-bit, Vl bus

Size:

Three/quarter-length, full-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

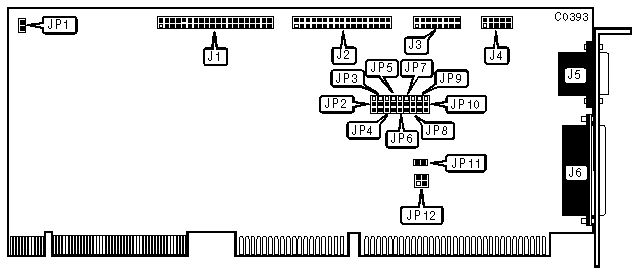

CONNECTIONS

Function

Location

40-pin IDE(AT) Interface connector

J1

34-pin control cable connector - floppy drive

J2

15-pin game port - internal

J3

10-pin serial port (COM2/3/4) - internal

J4

10-pin serial port (COM1/3/4) - external

J5

25-pin parallel port (LPT1/2/3) - external

J6

2-pin connector - Drive active LED

JP1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Hard drive enabled

JP2

pins 1 & 2 closed



Hard drive disabled

JP2

Pins 2 & 3 closed

»

Floppy drive enabled

JP3

pins 1 & 2 closed



Floppy drive disabled

JP3

Pins 2 & 3 closed

»

Game Port (J3) enabled

JP11

closed



Game Port (J3) disabled

JP11

open

SERIAL PORT CONFIGURATION

Port 1 (J5)

IRQ

JP4

JP5

JP12



»

COM1

IRQ4

Pins 1 & 2 closed

Pins 1 & 2 closed

pins 1 & 2 closed



COM2

IRQ3

Pins 1 & 2 closed

Pins 2 & 3 closed

pins 2 & 4 closed



COM3

IRQ4

Pins 2 & 3 closed

Pins 1 & 2 closed

pins 1 & 2 closed



Disabled

N/A

Pins 2 & 3 closed

Pins 2 & 3 closed

N/A

SERIAL PORT CONFIGURATION

Port 2 (J4)

IRQ

JP6

JP7

JP12

»

COM2

IRQ3

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 3 & 4 closed



COM1

IRQ4

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 3 closed



COM4

IRQ3

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 3 & 4 closed



Disabled

N/A

Pins 2 & 3 closed

Pins 2 & 3 closed

N/A

PARALLEL PORT SETTINGS

LPT

IRQ

JP8

JP9

JP10

»

1

IRQ7

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



2

IRQ5

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



3

N/A

Pins 1 & 2 closed

Pins 2 & 3 closed

N/A



Disabled

N/A

Pins 2 & 3 closed

Pins 2 & 3 closed

N/A
