Data bus:	16-bit EISA
Size:	Three-quarter length, Full-height card
Hard drive supported:	Up to fourteen SCSI devices
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB

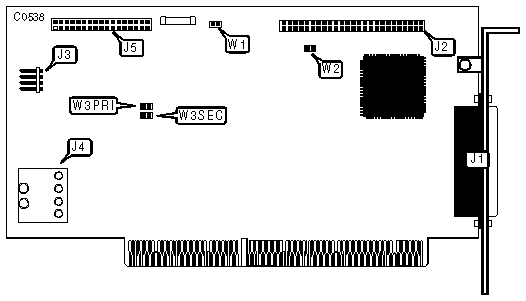

CONNECTIONS
Function	Location
50-pin SCSI connector - external	J1
50-pin SCSI connector - internal	J2
4-pin connector - drive active LED	J3
Optional power connector	J4
34-pin control cable connector - floppy drive	J5

USER CONFIGURABLE SETTINGS
Function	Location	Setting
TERMPWR disabled	W1	open
TERMPWR enabled	W1	closed
Host adapter TERMPWR enabled	W2	closed
Host adapter TERMPWR disabled	W2	open

ADDRESS SELECT
Address		DMA	IRQ	W3PRI	W3SEC
»	3F2 - 3F7h	2	IRQ6	closed	open
	372 - 377h	3	IRQ5	open	closed
