ELITEGROUP COMPUTER SYSTEMS, INC.

C190

Data bus:

16-bit ISA

Size:

Three quarter-length, full-height card

Hard drive supported:

One IDE (AT) interface drive

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, 1.44MB drives

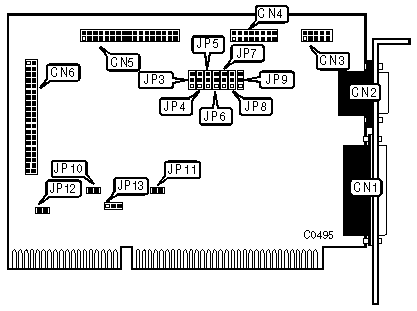

CONNECTIONS

Function

Location

Function

Location

Parallel port

CN1

Game port

CN4

Serial port 1

CN2

Floppy drive interface

CN5

Serial port 2

CN3

IDE interface

CN6

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Floppy drive interface enabled

JP8

pins 2 & 3 closed



Floppy drive interface disabled

JP8

pins 1 & 2 closed

»

Factory configured - do not alter

JP9

pins 2 & 3 closed

»

Factory configured - do not alter

JP13

pins 2 & 3 closed

»

IDE interface enabled

JP10 & JP11

closed



IDE interface disabled

JP10 & JP11

open

»

Factory configured - do not alter

JP12

N/A

PARALLEL PORT CONFIGURATION

LPT

JP3

JP4

»

2

pins 2 & 3 closed

pins 2 & 3 closed



1

pins 1 & 2 closed

pins 2 & 3 closed



3

pins 2 & 3 closed

pins 1 & 2 closed



Disabled

pins 1 & 2 closed

pins 1 & 2 closed

SERIAL PORT CONFIGURATION

Port 1 (CN2)

Port 2 (CN3)

JP5

JP6

JP7

»

COM1

COM2

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed



COM1

Disabled

pins 2 & 3 closed

pins 1 & 2 closed

pins 2 & 3 closed



COM2

COM1

pins 2 & 3 closed

pins 2 & 3 closed

pins 1 & 2 closed



Disabled

COM1

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed



Disabled

COM2

pins 1 & 2 closed

pins 2 & 3 closed

pins 2 & 3 closed



COM2

Disabled

pins 2 & 3 closed

pins 1 & 2 closed

pins 1 & 2 closed



Disabled

Disabled

pins 1 & 2 closed

pins 1 & 2 closed

open
