FIRST INTERNATIONAL COMPUTER, INC.
MIO-V
|
| |
|
Data bus: |
32-bit, VL bus |
|
Size: |
Three/quarter-length, half-height card |
|
Hard drive supported: |
Two IDE (AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

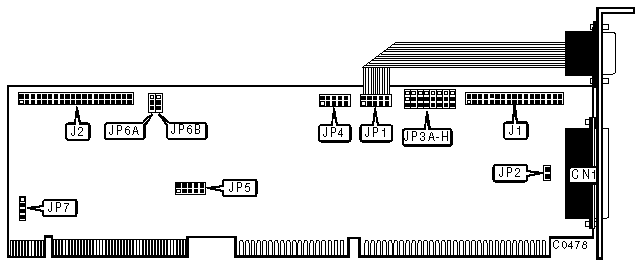

CONNECTIONS | |
|
Function |
Location |
|
25-pin parallel port (LPT1/2/3) - external |
CN1 |
|
34-pin control cable connector - floppy drive |
J1 |
|
40-pin IDE(AT) Interface connector |
J2 |
|
10-pin serial port (COM1/3) - internal |
JP1 |
|
10-pin serial port (COM2/4) - internal |
JP4 |
|
4-pin connector - Drive active LED |
JP7 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Parallel port is uni-directional |
JP2 |
closed |
|
Parallel port is bi-directional |
JP2 |
open | |
| » |
Parallel port Interrupt Request is IRQ7 |
JP3H |
pins 2 & 3 closed |
|
Parallel port Interrupt Request is IRQ5 |
JP3H |
pins 1 & 2 closed | |
| » |
Floppy drive enabled |
JP3G |
pins 1 & 2 closed |
|
Floppy drive disabled |
JP3G |
pins 2 & 3 closed | |
|
SERIAL PORT CONFIGURATION | |||
|
Port 1 (JP1) |
JP3A |
JP3B | |
| » |
COM1 |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM3 |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
SERIAL PORT CONFIGURATION | |||
|
Port 2 (JP2) |
JP3C |
JP3D | |
| » |
COM2 |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM4 |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
PARALLEL PORT (CN1) SETTINGS | |||
|
LPT |
JP3E |
JP3F | |
| » |
1 |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
2 |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
3 |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
PARALLEL PORT (CN1) INTERRUPT REQUEST | ||
|
IRQ |
JP3H | |
| » |
7 |
Pins 1 & 2 closed |
|
5 |
Pins 2 & 3 closed | |
|
IDE DATA TRANSFER RATE JP6 | ||||
|
Main Board Speed |
» Speed 0 |
Speed 1 |
Speed 2 | |
|
£ 33MHz |
JP6A - pins 1 & 2 JP6B - pins 1 & 2 |
JP6A - pins 2 & 3 JP6B - pins 1 & 2 |
JP6A - pins 2 & 3 JP6B - pins 2 & 3 | |
|
³ |
JP6A - pins 1 & 2 JP6B - pins 1 & 2 |
JP6A - pins 2 & 3 JP6B - pins 1 & 2 |
JP6A - pins 2 & 3 JP6B - pins 2 & 3 | |
|
Note:Pins designated should be in a closed position. The CPU speed identifer jumper on the mainboard must be in the closed position for ³ £ | ||||
|
BIOS ADDRESS | ||||||
|
Address |
JP5/jumper 1 |
JP5/jumper 2 |
JP5/jumper 3 |
JP5/jumper 4 |
JP5/jumper 5 | |
|
C0000h |
closed |
closed |
closed |
closed |
closed | |
|
C2000h |
closed |
closed |
closed |
open |
closed | |
|
C4000h |
closed |
closed |
open |
closed |
closed | |
|
C6000h |
closed |
closed |
open |
open |
closed | |
|
C8000h |
closed |
open |
closed |
closed |
closed | |
|
CA000h |
closed |
open |
closed |
open |
closed | |
|
CC000h |
closed |
open |
open |
closed |
closed | |
|
CE000h |
closed |
open |
open |
open |
closed | |
|
D0000h |
open |
closed |
closed |
closed |
closed | |
|
D2000h |
open |
closed |
closed |
open |
closed | |
|
D4000h |
open |
closed |
open |
closed |
closed | |
|
D6000h |
open |
closed |
open |
open |
closed | |
|
D8000h |
open |
open |
closed |
closed |
closed | |
|
DA000h |
open |
open |
closed |
open |
closed | |
|
DC000h |
open |
open |
open |
closed |
closed | |
| » |
DE000h |
open |
open |
open |
open |
closed |
|
Disabled |
n/a |
n/a |
n/a |
n/a |
open | |
