CMS ENHANCEMENTS, INC.
UNIVERSAL AT/XT CONTROLLER
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half length, full-height card |
|
Hard drive supported: |
Two IDE(AT) interface drives |
|
Floppy drives supported: |
None |
|

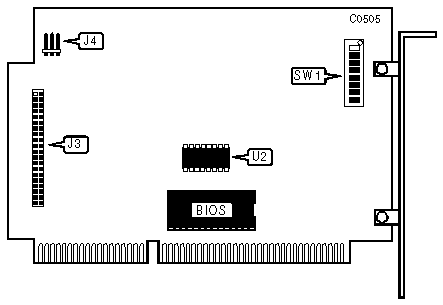

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE(AT) interface connector |
J3 |
|
External power connector |
J4 |
|
Replaceable controller chip |
U2 |
|
Note: Chip U2 can be replaced with a U2 A/X-30 chip for compatibility with some PS-2 model 30 systems. | |
|
USER CONFIGURABLE SETTING | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
SW1/1 |
N/A |
| » |
Factory configured - do not alter |
SW1/2 |
N/A |
| » |
Controller enabled |
SW1/3 |
on |
|
Controller disabled |
SW1/3 |
off | |
| » |
CMS drive C select |
SW1/4 |
on |
|
CMS drive D select |
SW1/4 |
off | |
| » |
I/O address select 1F0 - 1F7h |
SW1/7 |
on |
|
I/O address select 170 - 177h |
SW1/7 |
off | |
|
BASE MEMORY ADDRESS SELECT | |||
|
Address |
SW1/5 |
SW1/6 | |
| » |
C8000h |
off |
off |
|
D8000h |
off |
on | |
|
CC000h |
on |
off | |
|
DC000h |
on |
on | |
|
XT COMPATIBLE INTERRUPT CONFIGURATION | ||
|
IRQ |
SW1/8 | |
| » |
IRQ5 |
on |
|
IRQ2 |
off | |
|
AT COMPATIBLE INTERRUPT CONFIGURATION | ||
|
IRQ |
SW1/8 | |
| » |
IRQ14 |
on |
|
IRQ11 |
off | |
