Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB

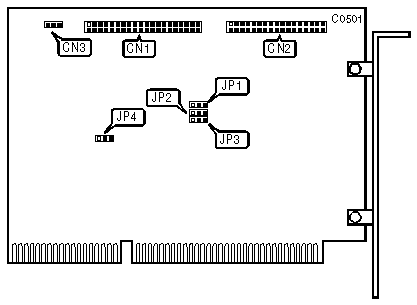

CONNECTIONS
Function	Location
40-pin IDE(AT) interface connector	CN1
34-pin control cable connector - floppy drive	CN2
IDE interface external LED connector	CN3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Primary address select	JP1 & JP2	pins 1 & 2 closed
	Alternate address select	JP1 & JP2	pins 2 & 3 closed
»	IDE interface enabled	JP3	pins 2 & 3 closed
	IDE interface disabled	JP3	pins 1 & 2 closed
»	Floppy drive interface enabled	JP4	pins 2 & 3 closed
	Floppy drive interface disabled	JP4	pins 1 & 2 closed
