DATA TECHNOLOGY CORPORATION

DTC5160CX

Data bus:

8-bit, ISA

Size:

Full-length, full-height card

Hard drive supported:

Two RLL ST506/412 drives

Floppy drives supported:

None

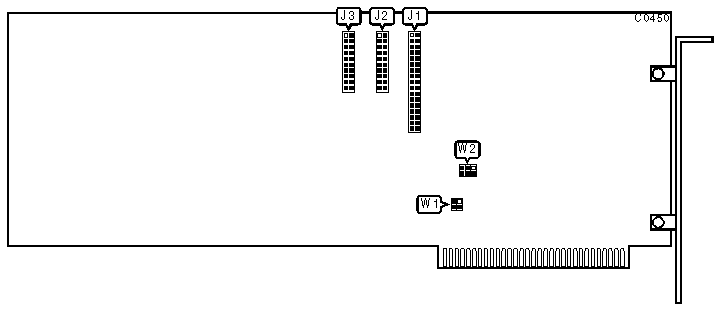

CONNECTIONS

Function

Location

34-pin control cable connector - hard drive

J1

20-pin data cable connector-drive 0

J2

20-pin data cable connector-drive 1

J3

BIOS ADDRESS

Address

W2/jumper 1

W2/jumper 2

W2/jumper 3

»

C800h

open

open

closed



D000h

closed

open

closed



D800h

open

closed

closed



F400h

closed

closed

closed



Disabled

n/a

n/a

open

BIOS SIZE

Size

W1/jumper 1

W1/jumper 2

8KB

closed

open

16KB

open

closed
