DATA TECHNOLOGY CORPORATION
DTC2280 (400485-89A)
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, half-height card |
|
Hard drive supported: |
Two IDE (AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

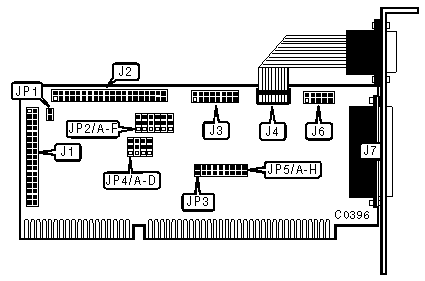

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector - floppy drive |
J1 |
|
40-pin IDE(AT) Interface connector |
J2 |
|
16-pin game port - internal |
J3 |
|
10-pin serial port (COM1/3/4) - internal |
J4 |
|
10-pin serial port (COM2/3/4) - internal |
J6 |
|
25-pin parallel port (LPT1/2/3) - external |
J7 |
|
2-pin connector - Drive active LED |
JP1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Parallel port is uni-directional |
JP3 |
closed |
|
Parallel port is bi-directional |
JP3 |
open | |
| » |
Hard drive port address is 3F6-3F7, 1F0-1F7h |
JP4/A |
pins 2 & 3 closed |
|
Hard drive port address is 376-377, 170-177h |
JP4/A |
pins 1 & 2 closed | |
| » |
Hard drive enabled |
JP4/B |
pins 1 & 2 closed |
|
Hard drive disabled |
JP4/B |
pins 2 & 3 closed | |
|
USER CONFIGURABLE SETTINGS (CONTINUED) | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive port address is 3F0-3F7h |
JP4/C |
pins 2 & 3 closed |
|
Floppy drive port address is 370-377h |
JP4/C |
pins 1 & 2 closed | |
| » |
Floppy drive enabled |
JP4/D |
pins 1 & 2 closed |
|
Floppy drive disabled |
JP4/D |
pins 2 & 3 closed | |
|
SERIAL PORT 1 (J4) CONFIGURATION | |||
|
COM |
JP2/A |
JP2/B | |
| » |
COM1 |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
COM3 |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
COM4 |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
SERIAL PORT 2 (J6) CONFIGURATION | |||
|
COM |
JP2/C |
JP2/D | |
| » |
COM2 |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
COM3 |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
COM4 |
pins 2 & 3 closed |
pins 1 & 2 closed | |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
PARALLEL PORT (J7) CONFIGURATION | |||
|
LPT |
JP2/E |
JP2/F | |
| » |
LPT1 |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
LPT2 |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
LPT3 |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
SERIAL PORT 1 (J4) INTERRUPT REQUEST | ||||
|
IRQ |
J5/A |
J5/B |
J5/C | |
| » |
IRQ4 |
closed |
open |
open |
|
IRQ3 |
open |
closed |
open | |
|
IRQ5 |
open |
open |
closed | |
|
SERIAL PORT 2 (J6) INTERRUPT REQUEST | ||||
|
IRQ |
J5/D |
J5/E |
J5/F | |
| » |
IRQ3 |
closed |
open |
open |
|
IRQ4 |
open |
closed |
open | |
|
IRQ5 |
open |
open |
closed | |
|
PARALLEL PORT (J7) INTERRUPT REQUEST | |||
|
IRQ |
J5/G |
J5/H | |
| » |
IRQ7 |
closed |
open |
|
IRQ5 |
open |
closed | |
