CONNER PERIPHERALS, INC.

AT ADAPTER BOARD

Data bus: 16-bit, ISA

Size: Half-length, full-height card

Hard drives supported: Two IDE Interface (AT) drives

Floppy drives supported: None

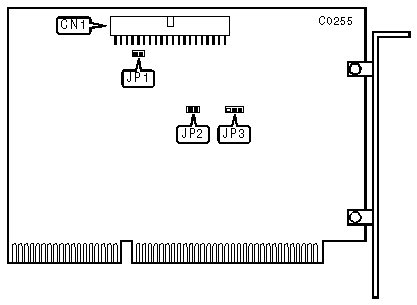

CONNECTIONS

Function

Location

40-pin IDE Interface (AT) connector-internal

CN1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Hard drive port address is 1F0-1F7h

JP1

open



Hard drive port address is 170-177h

JP1

closed

»

Chip Select 1 (CS1) enabled

JP2

closed



Chip Select 1 (CS1) disabled

JP2

open

»

IRQ14 is cleared with a status read only

JP3

pins 2 & 3 closed



IRQ14 is cleared with deassertion of Host Slv/Act

JP3

pins 1 & 2 closed
