DATA TECHNOLOGY CORPORATION
DTC5280CL, DTC5280CRA, DTC5280CRZ
|
|
Data bus: 16-bit, ISA
Size: Full-length, full-height card
Hard drives supported: Two MFM ST506 drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Sector interleave: 2:1
|

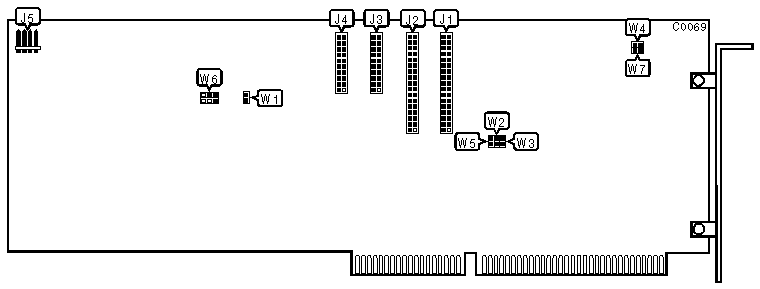

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector-floppy drive |
J1 |
|
34-pin control cable connector-hard drive |
J2 |
|
20-pin data cable connector-drive 0 |
J3 |
|
20-pin data cable connector-drive 1 |
J4 |
|
4-pin connector-drive active LED |
J5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Auto-deselect disabled |
W1 |
open |
|
Auto-deselect enabled |
W1 |
closed | |
| » |
Hard drive port addresses are 1F0-1F7 3F0-3F7h |
W2 & W3 |
open |
|
Hard drive port addresses are 170-177 370-377h |
W2 & W3 |
closed | |
| » |
Floppy drive data transfer rate is 500KHz |
W4 |
open |
|
Floppy drive data transfer rate is 250KHz |
W4 |
closed | |
| » |
Floppy drive precompensation is scaled by data rate: 500KHz=125ns, 300KHz=208ns, 250KHz=250ns |
W7 |
open |
|
Floppy drive precompensation is 125ns |
W7 |
closed | |
|
DRIVE SELECT MODE | |||
|
Function |
W5 |
W6/jumper 1 & W6/jumper 2 | |
| » |
Firmware D.S. mode - Drv. # driven to interface |
closed |
pins 2 & 3 closed |
|
Firmware D.S. mode - Drv. # intercepted by controller |
open |
pins 1 & 2 closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
This controller has no onboard user accessible programs. |
