CONNECTIONS

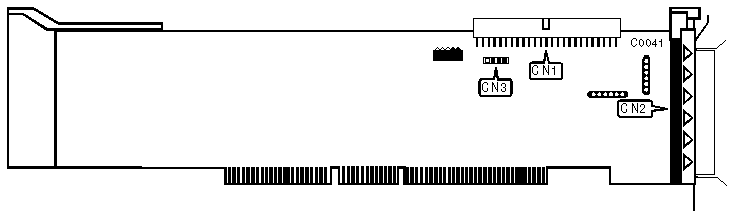

Function	Location
50-pin SCSI connectors-internal	CN1
50-pin SCSI connector-external	CN2
4-pin connector-drive active LED	CN3

STATUS LEDS
LED	Definition
LED 1-Yellow	DMA transfer in progress
LED 2-Yellow	Adapter has queued commands
LED 3-Yellow	Adapter is idle and waiting on host
LED 4-Red	Self-Test. If flashing or stays on for extended period, test has failed.
LED 5-Green	Adapter is processing command

MISCELLANEOUS TECHNICAL NOTES

All configurations are done through firmware.
