ARCHIVE CORPORATION

40MB INTERFACE CARD

Card Type

Tape Drive/Floppy Drive adapter card

Tape/Floppy drives supported

Unidentified

Data Bus

8-bit ISA

Card Size

Three-quarter length, half-height card

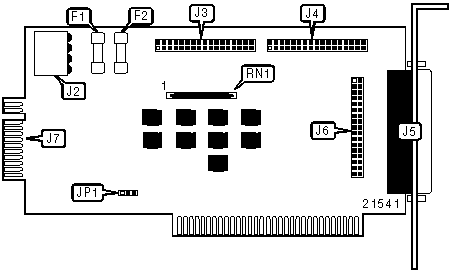

CONNECTIONS

Function

Location

Function

Location

Fuse (1.0 Amp; +5 Volt DC)

F1

External Tape interface connector

J5

Fuse (2.0 Amp; +12 Volt DC)

F2

Internal Tape interface connector

J6

DC Power connector

J2

XT Floppy interface connector

J7

AT Floppy interface connector

J3

Resistor network

RN1

Controller interface connector

J4



BASE I/O ADDRESS SELECTION

Setting

JP1

»

3F2h

Pins 2 & 3 closed



370h

Pins 1 & 2 closed

MISCELLANEOUS TECHNICAL NOTES

Adapter intended to be used with Archive Corporation tape drives (internal model 5540 and external model 3540C).
