ATTO TECHNOLOGY, INC.
EXPRESSPCI-PSC
Card Type |
Hard drive controller card |
Processor |
RISC |
Hard Drives supported |
Up to 15 Ultra/Wide SCSI devices |
Floppy drives supported |
None |
Data Bus |
32-bit PCI |
Card Size |
Half-length, full-height card |
RAID levels supported |
0 |

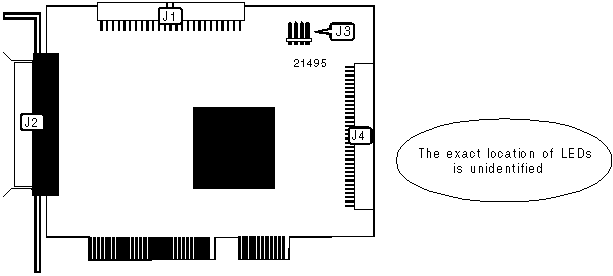

CONNECTIONS | |||
Function |
Location |
Function |
Location |
50-pin SCSI connector - internal |
J1 |
4-pin connector - drive active LED |
J3 |
68-pin SCSI connector - external |
J2 |
68-pin SCSI connector - internal |
J4 |
TERMINATION LEDS | |||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Low order byte on SCSI channel terminated |
LED1 |
Unidentified |
Off |
Low order byte not terminated |
LED2 |
Unidentified |
On |
High-order byte on SCSI channel terminated |
LED2 |
Unidentified |
Off |
High order byte not terminated |
Note: The ExpressPCI-PSC automatically configures its own termination and provides feed back via two LEDs located on the top edge of the card. Exceptions to automatic configuration are listed in the Miscellaneous Technical Notes table. |
MISCELLANEOUS TECHNICAL NOTES |
Only two SCSI connectors (J1&J2, J2&J3 or J3&J1) can be used simultaneously. All three SCSI connectors cannot be used at one time. Termination must be manually configured under two conditions. The ExpressPCI-PSC will not automatically configure termination when narrow (8-bit) devices are attached to the internal connector and wide (16-bit) devices are attached to the external connector, or vice-versa. In these cases, the on-board terminators must be set to terminate high-order byte (the ExpressPCI-PSC must lies at the end of the high-order bus). Refer to the ExpressPro-Tools Bus Configuration Utilities section in the ExpressPro-Tools User’s Manual for appropriate settings. Active termination is strongly recommended. |
