Data Bus	32-bit PCI
Card Size	Full height, half length
Hard Drives Supported	Up to 15 Ultra-SCSI Wide devices
Floppy Drives Supported	None

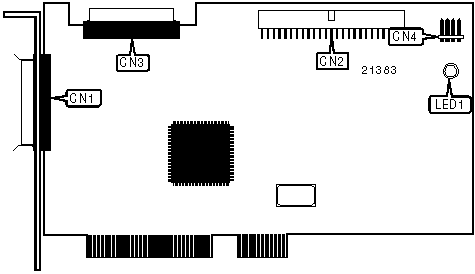

CONNECTIONS
Function	Label	Function	Label
68-pin SCSI connector - external	CN1	68-pin SCSI connector - internal	CN3
50-pin SCSI connector - internal	CN2	4-pin connector - drive active LED	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	SCSI bus is active
LED1	Unidentified	Off	SCSI bus is inactive
