ADVANCED INTEGRATION RESEARCH, INC.
IDE-2V
|
Data bus: |
32-bit VL-bus |
|
Size: |
Three-quarter length, half-height card |
|
Hard drive supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

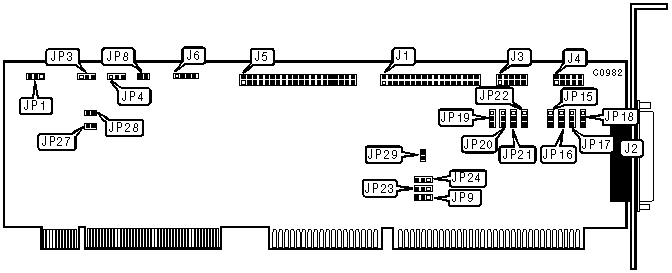

CONNECTIONS | |
|
Function |
Location |
|
34-pin cable connector - floppy drive |
J1 |
|
25-pin parallel port - external |
J2 |
|
10-pin serial port 2 - internal |
J3 |
|
10-pin serial port 1 - internal |
J4 |
|
40-pin IDE(AT) connector |
J5 |
|
4-pin connector - drive active LED |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
|
» |
Serial port 1 IRQ 4 select |
JP23 |
Pins 2 & 3 closed |
|
|
Serial port 1 IRQ 3 select |
JP23 |
Pins 1 & 2 closed |
|
» |
Serial port 2 IRQ 3 select |
JP24 |
Pins 2 & 3 closed |
|
|
Serial port 2 IRQ 4 select |
JP24 |
Pins 1 & 2 closed |
|
» |
Parallel port IRQ 7 select |
JP9 |
Pins 2 & 3 closed |
|
|
Parallel port IRQ 5 select |
JP9 |
Pins 1 & 2 closed |
|
» |
Floppy drive interface enabled |
JP22 |
Pins 2 & 3 closed |
|
|
Floppy drive interface disabled |
JP22 |
Pins 1 & 2 closed |
|
» |
Turbo speed disabled |
JP1 |
Pins 2 & 3 closed |
|
|
Turbo speed enabled |
JP1 |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP29 |
Open |
|
PARALLEL PORT ADDRESS SELECTION | |||
|
LPT |
JP19 |
JP20 | |
|
|
LPT1 (378h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
» |
LPT2 (278h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
|
LPT3 (3BCh) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
|
Disabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
SERIAL PORT 1 ADDRESS SELECTION | |||
|
COM |
JP15 |
JP16 | |
|
» |
COM1 (3F8h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
|
COM2 (2F8h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
SERIAL PORT 2 ADDRESS SELECTION | |||
|
COM |
JP17 |
JP18 | |
|
» |
COM2 (2F8h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
|
COM1 (3F8h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
IDE ENABLE/DISABLE SELECTION | |||
|
Setting |
JP8 |
JP21 | |
|
» |
Enable |
Open |
Pins 2 & 3 closed |
|
|
Disable |
Closed |
Pins 1 & 2 closed |
|
IRQ14 BUFFER SELECTION | |||
|
IRQ14 |
JP27 |
JP28 | |
|
» |
Direct from drive |
Open |
Closed |
|
|
Buffered from drive |
Closed |
Open |
|
IDE RECOVERY TIME SELECTION | |||
|
Setting |
JP3 |
JP4 | |
|
|
120ns |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
|
180ns |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
|
240ns |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
» |
300ns |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
