ACCULOGIC, INC.

ISAPPORT

Data bus:

16-bit ISA

Size:

Half-length, full-height card

Hard drive supported:

Up to seven Fast SCSI-2 devices

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives

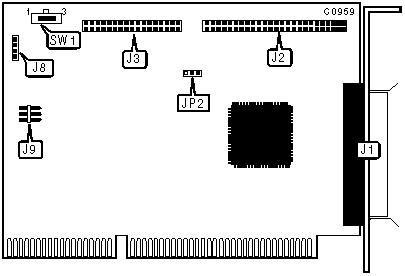

CONNECTIONS

Function

Location

50-pin SCSI connector - external

J1

50-pin SCSI connector - internal

J2

34-pin cable connector - floppy drive

J3

4-pin power connector

J8

4-pin connector - drive active LED

J9

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Floppy drive interface enabled as primary

JP2

Pins 2 & 3 closed



Floppy drive interface disabled

JP2

Pins 1 & 2 closed

»

Normally configure board during installation

SW1

Position 2



Lock configuration during installation

SW1

Position 1



Reset configuration

SW1

Position 3

Note: SW1 is set to normal unless two ISApport boards are installed on the same system. In this

situation, the boards are installed sequentially. First, board 1 is installed and configured. Then,

its SW1 is set to lock, and board 2 is installed and configured with its SW1 set to normal.

The reset setting for SW1 is not identified.
