Data bus:	32-bit PCI
Size:	Half-length, full-height card
Hard drive supported:	Up to seven Fast SCSI-2 devices
Floppy drives supported:	None

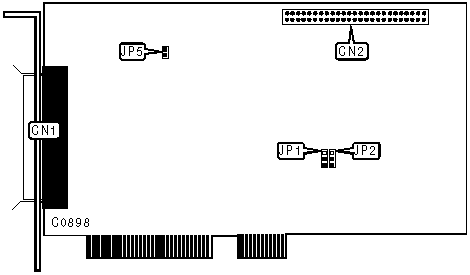

CONNECTIONS
Function	Location
50-pin SCSI connector - external	CN1
50-pin SCSI connector - internal	CN2

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Termination enabled	JP5	open
	Termination disabled	JP5	closed
Note: Termination must be disabled if both internal and external devices are connected. Termination must be enabled if only external or internal devices are connected.

PCI INTERRUPT SELECTION
Interrupt		JP1	JP2
»	INT A	pins 1 & 2 closed	open
	INT B	pins 2 & 3 closed	open
	INT C	open	pins 1 & 2 closed
	INT D	open	pins 2 & 3 closed
