BUSLOGIC, INC.
BT-545C
|
| |
|
Data bus: |
16-bit, ISA-bus |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives |
|

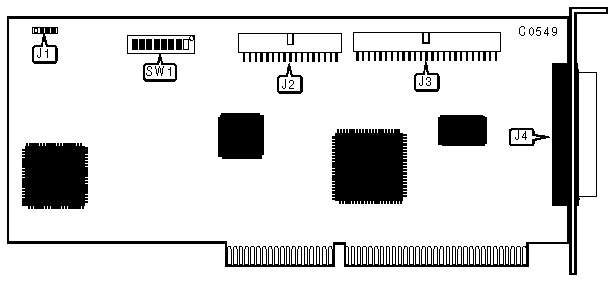

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector - drive active LED |
J1 |
|
34-pin connector - floppy drive interface |
J2 |
|
50-pin connector - internal SCSI interface |
J3 |
|
50-pin connector - external SCSI-2 connector |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
SW1/4 |
N/A |
| » |
Floppy connector enabled |
SW1/8 |
On |
|
Floppy connector disabled |
SW1/8 |
Off | |
|
PORT ADDRESS CONFIGURATION | ||||
|
Port Address |
SW1/1 |
SW1/2 |
SW1/3 | |
| » |
330 |
On |
On |
On |
|
130 |
On |
On |
Off | |
|
134 |
Off |
On |
Off | |
|
230 |
On |
Off |
On | |
|
234 |
Off |
Off |
On | |
|
334 |
Off |
On |
On | |
|
N/A |
N/A |
Off |
Off | |
|
BIOS ADDRESS CONFIGURATION | ||||
|
BIOS Address |
SW1/5 |
SW1/6 |
SW1/7 | |
| » |
DC000 |
On |
On |
On |
|
CC000 |
On |
On |
Off | |
|
C8000 |
Off |
On |
Off | |
|
D0000 |
Off |
Off |
On | |
|
D4000 |
On |
Off |
On | |
|
D8000 |
Off |
On |
On | |
|
Disabled |
N/A |
Off |
Off | |
