ADAPTEC, INC.

AHA-1542CF, AHA-1540CP, AHA-1542CF, AHA-1542CP

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drive supported:

Up to seven SCSI drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

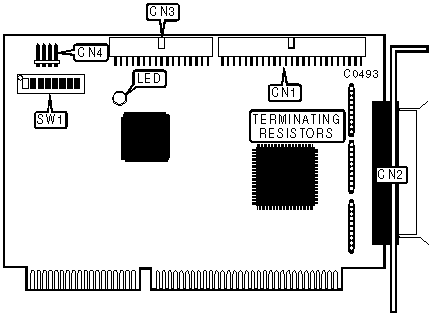

CONNECTIONS

Function

Location

50-pin SCSI connector - internal

CN1

50-pin SCSI connector - external

CN2

34-pin control cable connector - floppy drive

CN3

4-pin connector - drive active LED

CN4

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

SCSI Termination set through software

SW1/1

off



SCSI Termination enabled

SW1/1

on

»

Floppy drive enabled

SW1/5

off



Floppy drive disabled

SW1/5

on

I/O PORT ADDRESS SELECTION

Address

SW1/2

SW1/3

SW1/4

»

330-333h

off

off

off



334-337h

on

off

off



230-233h

off

on

off



234-237h

on

on

off



130-133h

off

off

on



134-137h

on

off

on



Reserved

off

on

on



Reserved

on

on

on

BIOS ADDRESS SELECTION

Address

SW1/6

SW1/7

SW1/8

»

DC000h

off

off

off



D8000h

on

off

off



D4000h

off

on

off



D0000h

on

on

off



CC000h

off

off

on



C8000h

on

off

on



Reserved

off

on

on



Disabled

on

on

on
