ALWAYS TECHNOLOGY CORPORATION

AL-4000

Data bus:

32-bit, EISA

Size:

Full-length, full-height card

Hard drives supported:

Up to seven SCSI devices

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB

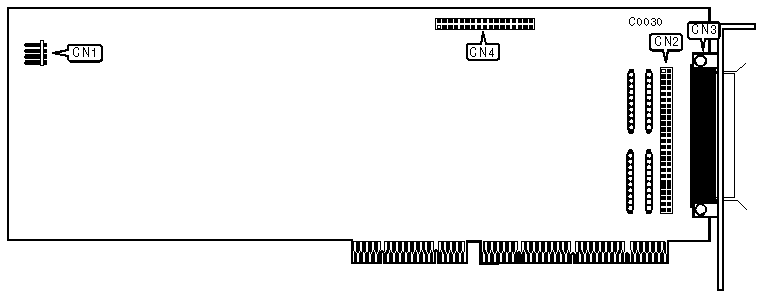

CONNECTIONS

Function

Location

4-pin connector-drive active LED

CN1

50-pin control cable connector-internal

CN2

50-pin SCSI connector-external

CN3

34-pin data cable connector-floppy drive

CN4

MISCELLANEOUS TECHNICAL NOTES

There are no jumpers on the AL-4000, all configuring is done through the firmware.
